fire-protection door with thermal break

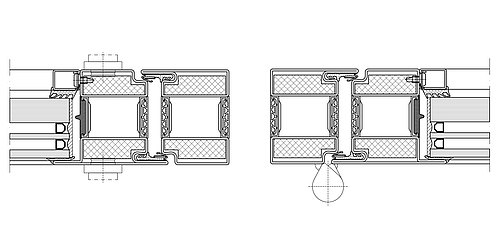

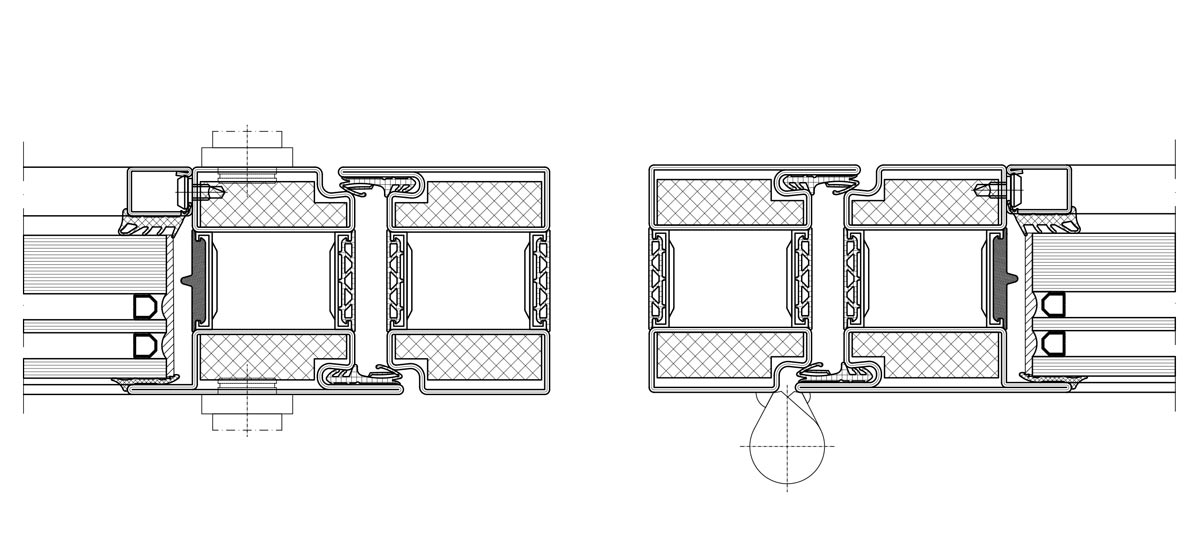

Forster unico is the revolutionary, thermally insulated profile system for fire-protection doors that comprises 100% recyclable steel and contain no synthetic insulating materials – in contrast to all other insulated systems. This innovation, uniquely evocative of a framework style of construction, satisfies the most stringent demands relating to physical and structural functions.
This is the latest technology, energy efficiency, attractive design and the ecological use of materials for a responsible and sustainable construction.
Multipoint locks specially designed for the system provide economical manufacture. These also allow for an anti-panic escape door.
| Technical details | |
|---|---|
| Material options | steel |
| Dimensions | clear opening single-leaf 1370 × 3010 mm clear opening double-leaf 2700 × 3010 mm glazing height 5000 mm, width unlimited |
| Performance specifications* | fire-resistance EI30 according to EN 1634-1 UD > 1.5 W/(m²⋅K) Ug 1.1 W/(m²⋅K) double glazed units Ug 0.9 W/(m²⋅K) triple glazed units |
| System properties | CE-marking according to EN 14351-1 barrier-free leaf weight up to 300 kg integrated door closer anti-panic touch-bar |
| Variants | escape door with anti-panic, partially-panic on open leaf |
*refer to country-specific approvals
| LEAFLETS | doors and windows with thermal break |
| PROCESSING | ring binder 1 (doors) |
| fire-resistant door EI30 with thermal break | |
| system overview | |
| PLANNING | planning catalogue |
| DWG | |
| INSTRUCTION MANUALS | operating and safety instructions |
| installation and maintenance instructions | |
| complementary instructions for fire-resistant elements | |
| EUROPEAN PRODUCT DECLARATION (EPD) | doors in steel / stainless steel |
| VIDEOS |  processing videos |
